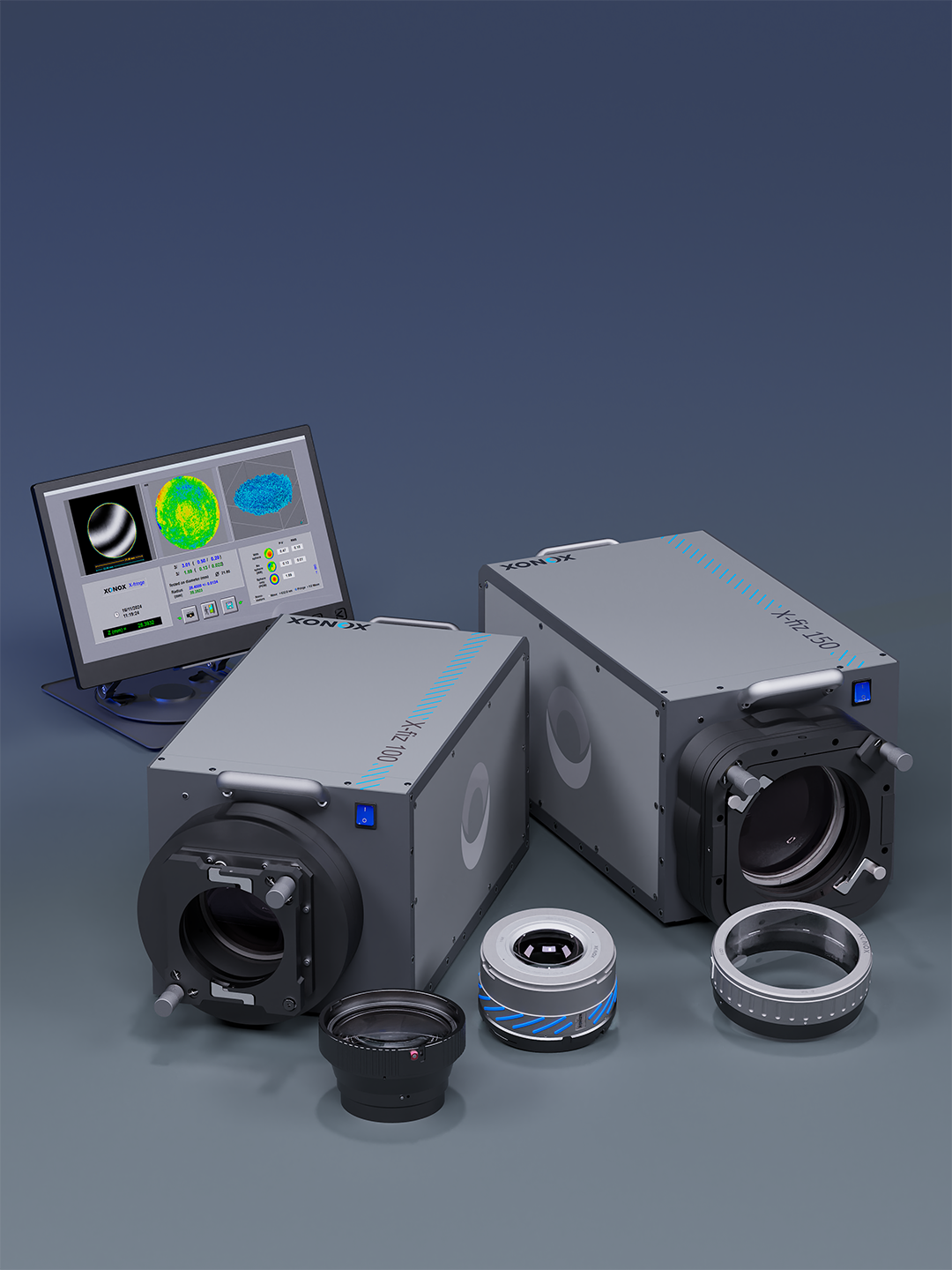

X-fiz 100 / X-fiz 130

download brochure
  • innovative, high quality Fizeau interferometer with high resolution 1.3 MP camera
  • remote controlled and positioned, motorized zoom with 10X optical magnification
  • remote controlled an positioned, motorized focus adjustment
  • smart electronic attenuator with automatic saturation adjustment
  • highly rigid frame and robust opto-mechanical design ensure alignment is maintained when mounting and that alignment will be maintained over time
  • high quality piezo phase shifter with tip-tilt TS holder, compatible with Zygo style bayonet and XONOX 4+ Optical Connector
  • industry standard 632.8nm HeNe laser
  • 100mm (4”) and 132mm (5.2”) versions available, 5.2” version compatible with XONOX 4+ series TS objectives without need of optical connector
  • Smart Remote – innovative remote allows for quick selection of zoom, focus, and attenuation settings
  • Smart Maintenance Concept – innovative design concept allows for change of laser and electrical components within minutes; all without opening the sensitive optical area of the system. A laser change does not require a realignment and the process can be done with the interferometer still installed within the measurement platform
  • 1-interface Concept – industry standard USB 3.0 protocol used for all communications between computer and interferometer on a single cable
  • USB 3.0 Interface for access to all functions via software

TECHNICAL DATA X-fiz100 / X-fiz130

  • Laser Source

    632.8 nm HeNe Laser / polarizied / class IIIA - 3R / 2mW output

  • Version 4" (100mm Aperture)
    • X-fiz 100 B - 4" (100mm) Fizeau Interferometer
    • X-fiz 100 ST - 4" (100mm) Fizeau Interferometer with X-fringe ST static fringe analysing system
    • X-fiz 100 PS2 - 4" Phase Shifting Fizeau Interferometer X-fringe2 PS phase shifting fringe analysing system
    • TS connection for all X-fiz100 Versions: 4“ Zygo type bayonet
  • Version 5.2" (132mm Aperture)
    • X-fiz 130 B - 5.2" (100mm) Fizeau Interferometer
    • X-fiz 130 ST - 5.2" (100mm) Fizeau Interferometer with X-fringe ST static fringe analysis system
    • X-fiz 130 PS2 - 5.2" Phase Shifting Fizeau Interferometer X-fringe2 PS phase shifting fringe analysis system
    • TS connection for all X-fiz130 Versions: 5.2“ XONOX 4+ Interface with adapter to 4“ Zygo type bayonet
  • Camera

    1.3 Mpx, 8bit monochrome CMOS sensor, 210 FPS, shutter min 50µs

  • Imaging system

    10x motorized zoom with positioning, +/- 3mm motorized focus with positioning

  • Control panel

    Wired remote controller with rotating positioning controllers for zoom, focus and contrast/attenuation

  • Connections

    Wired remote controller with rotating positioning controllers for zoom, focus and contrast/attenuation

  • Computer / Software

    High performance DELL PC, 24" touch screen, 19" live image screen, WIN10 64 bit, X-fringe2 PS / X-fringe ST

  • Dimensions (WxHxD) / weight

    310 x 285 x 530 (595 incl. phase shifter) /

    approx. 35 kg

  • Color

    Light grey RAL 7035
